Surface Mount – The State-of-the-Art Samsung SM421 surface mount machine has the ability to place 21,000 components per hour (based on IPC9850) with an accuracy of +/- 30µ. This model is also equipped with a high resolution video system.
Click to Enlarge
The Samsung SM411 chipshooter has a strong and stable frame to allow extreme placement accuracy at high speeds. This machine has a maximum placement rate of 42,000 chips her hour (based on IPC9850), and an accuracy of +/-50µm.
Click to Enlarge
The Samsung SM320 machines combine speed and accuracy to place up to 18,500 components per hour with a +/- 50 µm accuracy and up to 5,500 cph (based on IPC 9850) at +/- 30 µm for QFPs and BGA’s.
Click to Enlarge

BTU’s Pyramax 125A reflow oven is in every way efficient and accurate. Closed loop convection control allows for precise heating and cooling along with constant heat transfer. Maximum process control grants temperature uniformity, guaranteed process repeatability and convection efficiency.


Click to Enlarge

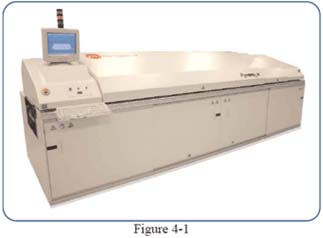

BTU’s Pyramax 98A oven provides 7-zone air processing for the industry’s most cost-effective SMT reflow performance and is recommended for the lead-free assembly process.


Click to Enlarge
